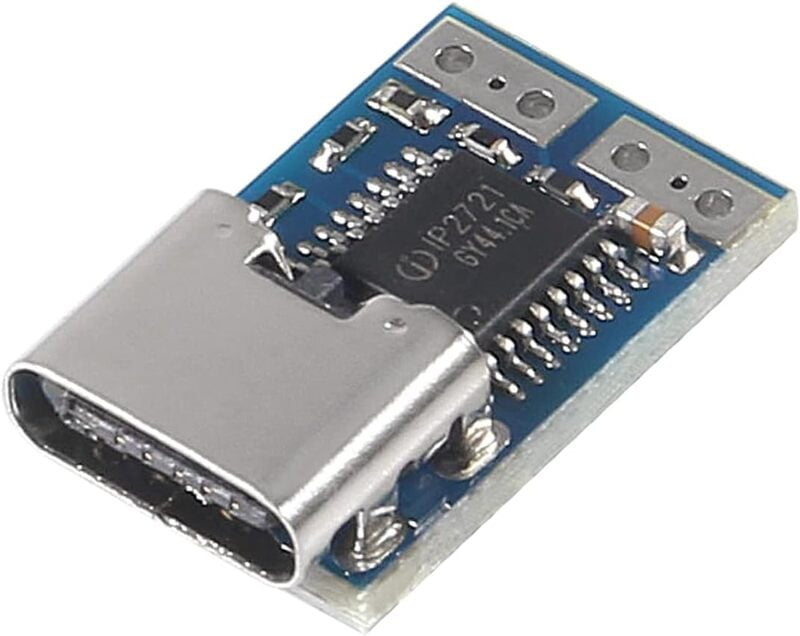

WalkOnAir USB C PD DC Fixed Voltage Power Trigger Decoy Module PDC004 - IP2721 Type C(9V,12V,15V,20V))
PD decoy module PD23.0 to DC DC trigger extension cable QC4 charger 9V 12V 15V 20V PD decoy module uses 2721 hardware PD chip, can't be upgraded, can't change voltage, can't solve compatibility problems. PDC004 uses a hardware PD identification chip.The identification logic of this identification chip is: tricking to trigger a fixed voltage.
Specifications: Product Name: PD decoy module. Product Chip:2721 hardware PD chip Work Temperature:-25℃~85℃ Work Humidity:5%~95%RH Size:16*10*4 mm
The PD decoy module uses a fixed voltage trick with a hardware PD identification chip, but it cannot change voltages or solve compatibility issues. Please be aware that the hardware chip may randomly apply voltages and does not support charging head information reading, PPS gear, or arbitrary voltage selection. Safety is paramount: Forcing an incompatible voltage could lead to overheating and fire risks, so exercise caution with this module's usage. While this module doesn't support all charging heads, it offers an effective solution for specific voltage requirements, making it a valuable addition to your DIY and upgrade projects.
- Power your electronic projects or upgrade legacy hardware with USB-C using the PD004 PD Decoy Module
- Perform PD power negotiation effortlessly with support for up to 5A of current
- Ensure compatibility with your power supply by automatically selecting the closest available voltage if the requested voltage is unsupported
- Note that this module is designed to perform PD negotiation and pass the output; to use currents over 3A, an electronically marked Type-C cable is required
- Compatibility is essential: Make sure you have a genuine USB PD power source, as this module won't work with QC-only chargers, PD decoy modules, or QC4 chargers with differing voltages
