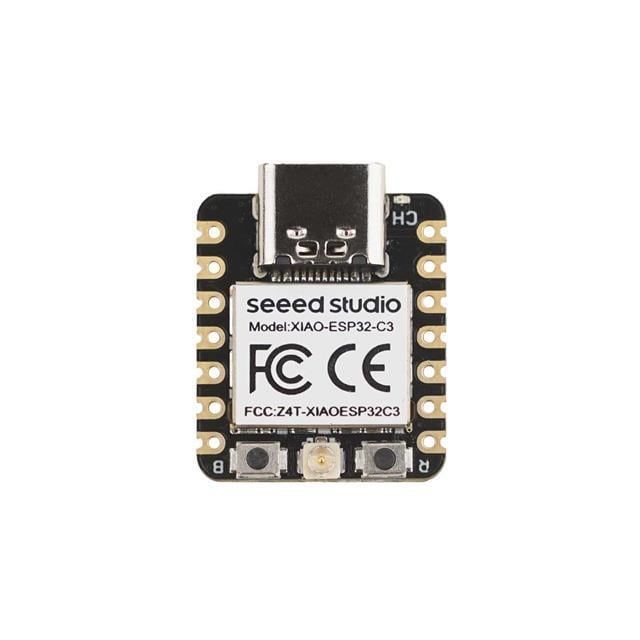

Seeed Studio XIAO ESP32C3 - RISC-V Wi-Fi and Bluetooth MCU for IoT: Tiny, Efficient, and Battery-Supported
Rs.1,899.00 Rs.7,499.00
Specification: Processor: ESP32-C3 SoC RISC-V single-core 32-bit chip processor with a four-stage pipeline clocked at up to 160 MHz Wireless: Complete 2.4GHz Wi-Fi subsystem, Bluetooth 5.0/ Bluetooth mesh On-chip Memory: 400KB SRAM & 4MB Flash Interface: 1x UART, 1x IIC, 1x SPI, 11x GPIO(PWM), 4x ADC 1x Reset button, 1x Boot button Dimensions: 21 x 17.5mm Power: Circuit operating voltage: 3.3V@200mA Charging current: 50mA/100mA Input voltage (VIN): 5V Deep Sleep Power Consumption: Deep Sleep Model: >44 μA Wi-Fi Enabled Power Consumption: Active Model: <75 mA Modem-sleep Model: <25 mA Light-sleep Model: <4 mA BLE Enabled Power Consumption: Modem-sleep Model: <27 mA Light-sleep Model: <10 mA Working Temperature: -40°C ~ 85°C Application: • Internet of Things • Wearable devices • Health monitoring • Education • Low-Power(LP) networking • Rapid prototyping This tiny board boasts a new RISC-V architecture and supports both Wi-Fi and BLE wireless connections, making it a versatile choice for various IoT applications. At the heart of the Seeed Studio XIAO ESP32C3 is the highly-integrated ESP32-C3 chip, featuring a 32-bit RISC-V chip processor with a four-stage pipeline clocked at up to 160 MHz. This chip houses a complete 2.4GHz Wi-Fi subsystem, offering support for Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. Moreover, it delivers Bluetooth 5 and Bluetooth mesh capabilities. With 400 KB SRAM and 4 MB Flash on board, you get ample programming space to explore innovative IoT control scenarios. It even includes a battery charge chip and integrated circuit for enhanced portability. An external antenna is provided to boost wireless signal strength, and the board offers 11 digital I/O pins for PWM and 4 analog I/O pins for ADC. It also supports UART, IIC, and SPI serial communication ports, making it perfect for various applications, including wearable and portable devices
Product Details
• Flexible MCU Board: Empowered by the ESP32-C3 32-bit RISC-V chip, clocked up to 160 MHz, featuring multiple development ports, and Arduino / CircuitPython support.
• Outstanding RF Performance: Complete Wi-Fi and Bluetooth Low Energy functions with over 100m communication range using a U.FL antenna.
• Elaborate Power Design: Offers 4 working modes, including deep sleep mode with a minimal 44 μA power consumption, and supports lithium battery charge management.
• Thumb-sized Design: Compact 21 x 17.5mm dimensions, following the classic Seeed Studio XIAO form factor, ideal for wearable devices.
• Perfect for Production: Breadboard-friendly & SMD design with no components on the back
